SVEN SV1290

UPS battery 12V 9Ah

Catalog Electrical Equipment Batteries SVEN SV1290

AN: SV-0222009

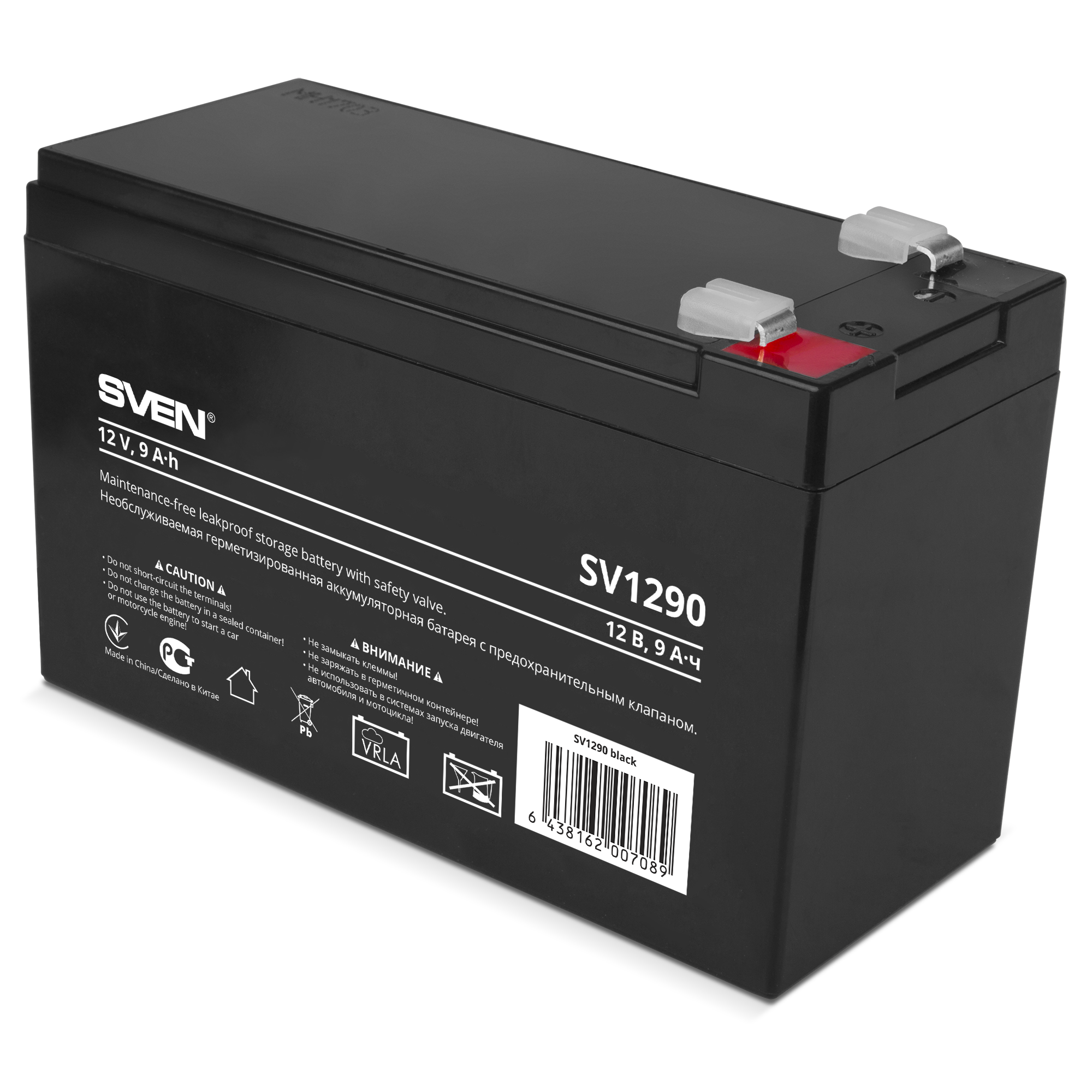

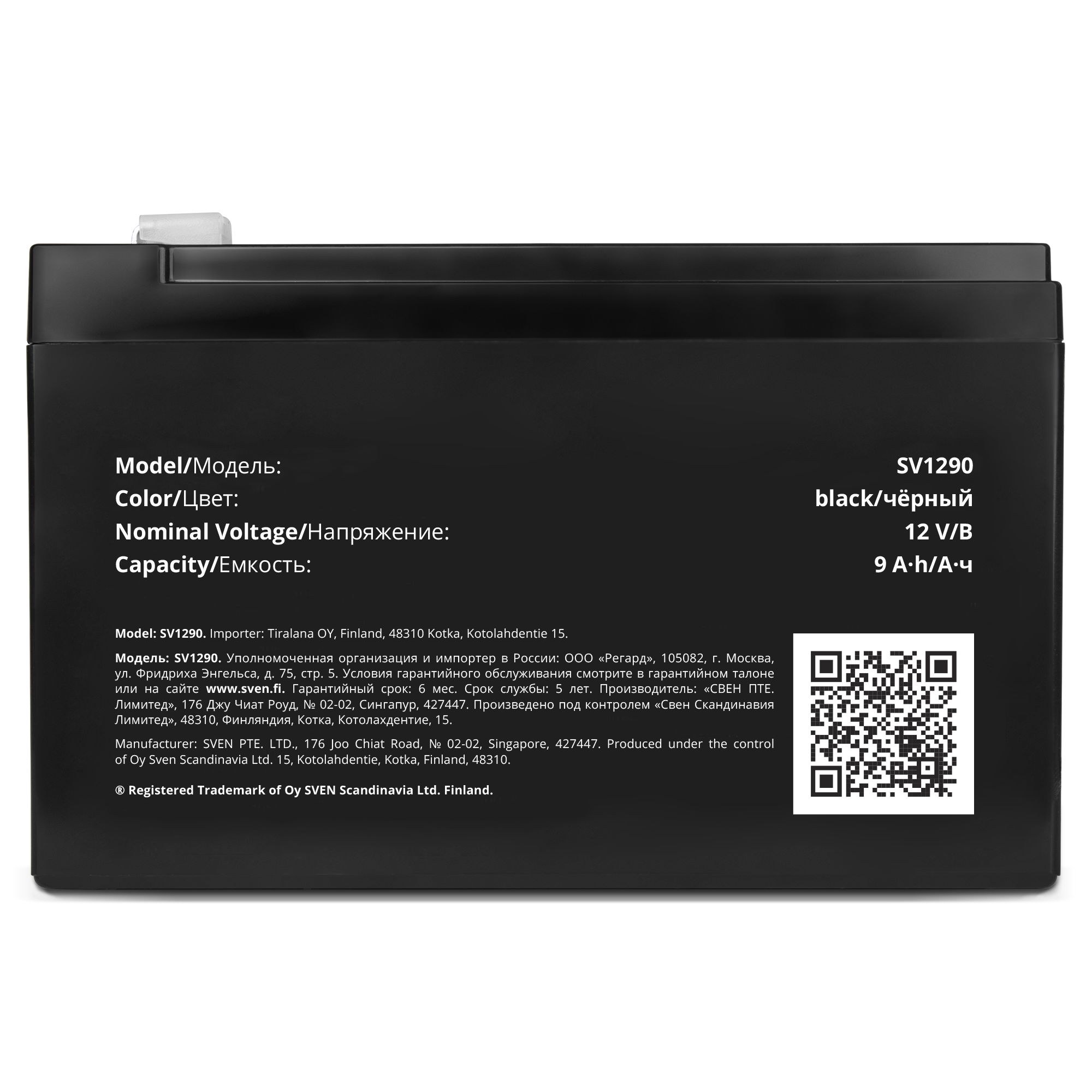

SVEN SV1290

UPS battery 12V 9Ah

Short product description:

Lead-acid battery of AGM type
Leak-proof design
Doesn't require maintenance and service
Increased service life

All features

Similar products

SVEN SV645

SVEN SV1250

SVEN SV1270

SVEN SV1272

SVEN SV12120

SVEN SV12170

SVEN SV121000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Lead-acid battery of AGM type
Leak-proof design
Maintenance-free: doesn't require maintenance and can operate in any position
Design of interelectrode separators made of glass fiber increases service life
Does not liberate gas during operation
Valve system protecting the battery against increased pressure
Highly effective lead-calcium electrode grids increasing capacity
Lowered self-discharge current

Battery type	Lead-acid AGM type storage battery
Rated voltage, V	12
Maximum discharge current, A	128
Capacity (20 hours discharge), А • h	9
Maximum charging current, A	2.7
Internal resistance, MOhm	16
Self-discharge (at 25 °C of initial capacity) during the year	up to 36 %
Rated operating temperature, °C	25
Operating temperature range, °C	-20 up to +50
Terminal type	F2
Length, mm	151
Width, mm	65
Hight, mm	94
Total hight, mm	100
Weight, kg	2.4
Color	black
Life time	5 years

Other items

SVEN SB-G1450

Compact gaming soundbar with Bluetooth and dynamic switchable lighting

SVEN RX-G880

Programmable gaming mouse

SVEN SPS-702

Speakers with volume and tone controls and headphone output on the front panel

SVEN MK-715

Two plastic wireless dynamic microphones

SVEN MC-50

Hi-Fi speaker system with the highest sound quality. Bluetooth, Optical, remote control, headphone output

SVEN AP-010MV

On-ear wired headphones

SVEN PS-390

Waterproof portable speaker system with backlight

SVEN MS-1821

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control

SVEN AP-860M

Full size wired headset

SVEN GS-9200

Gaming set: keyboard + mouse + mousepad

SVEN KB-G9500

Mechanical programmable gaming keyboard

SVEN 422

Mini soundbar with volume controls on the front panel

As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.

Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
