SVEN SF-05E 5 sockets surge protector, 2300 W

SVEN SF-05E

5 sockets surge protector, 2300 W

Catalog Electrical Equipment Surge Protectors, Power Strips & Over Voltage Protectors SVEN SF-05E

AN: SV-021764 (1 m), SV-021559 (1,8 m), SV-021566 (3 m), SV-021573 (5 m)

SVEN SF-05E

5 sockets surge protector, 2300 W

Short product description:

Switch with light indicator
Children protection
Wall mountable
Maximum permissible load 2300 W

All features

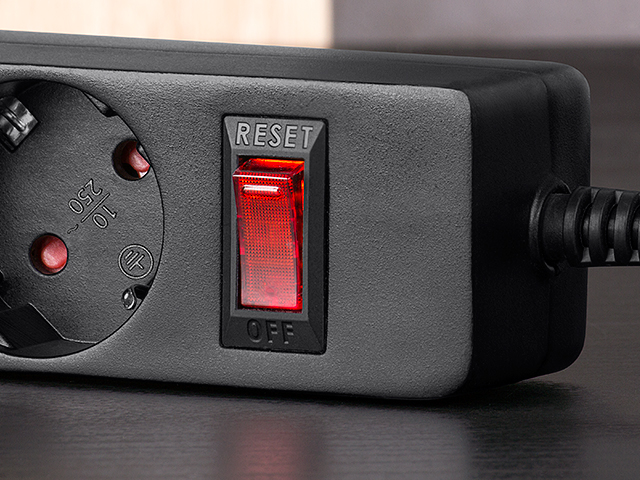

Durable enclosure made of non-flammable material

The strip enclosure material is very durable and doesn't sustain combustion.

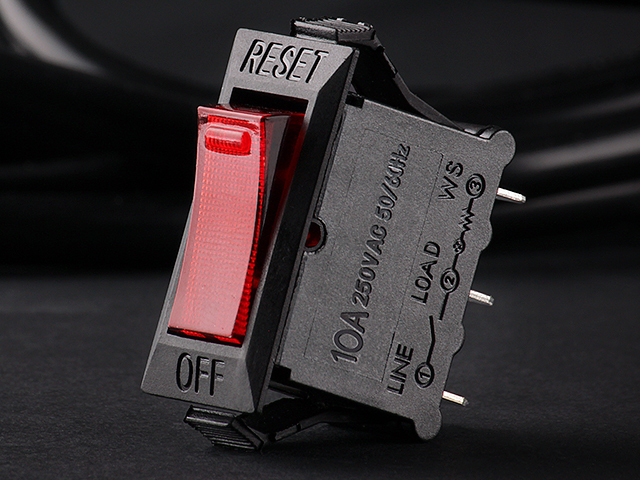

Protection against overloads and short circuits in the switch key

Automatic fuse protecting against overloads and short circuit is located in the switch key, allowing to quickly return the strip to operation after it is triggered.

Resistant to all issues

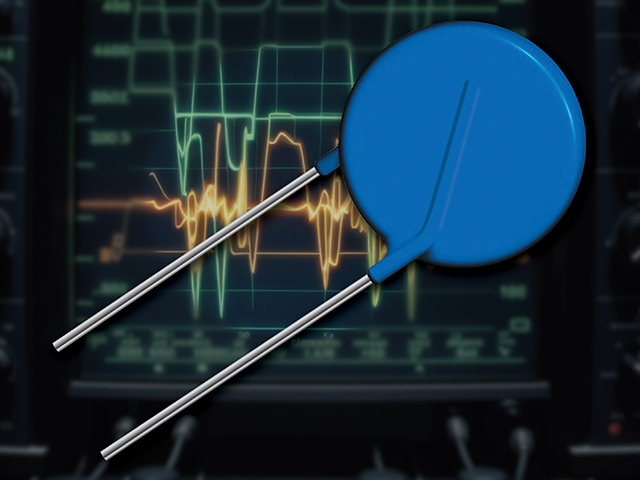

Power strip is ready to operate in the most "troublesome" electrical networks. Varistor protection helps the power strip easily overcome high-voltage and pulse noises.

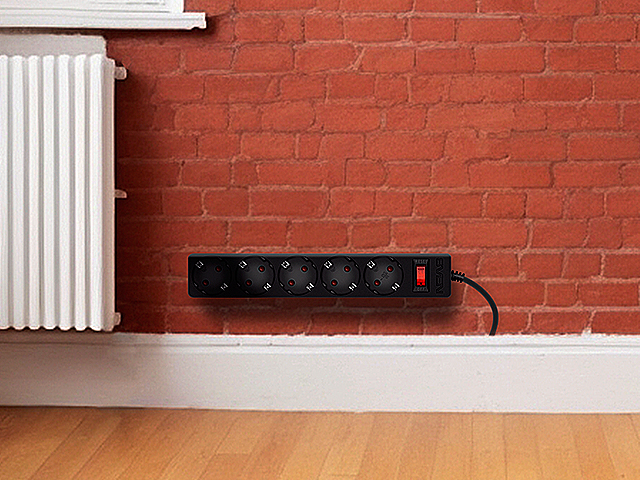

Wall-mounting in any position

Wall fittings help mount the strip on a wall in any position: horizontally, vertically and even at an angle.

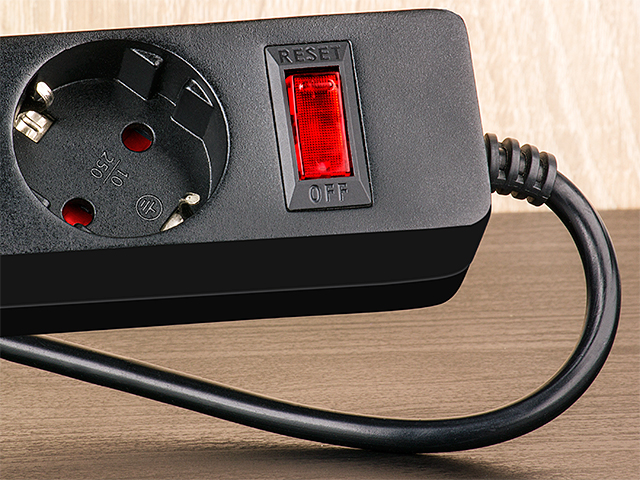

Protective shutters against foreign objects

Durable shutters on the sockets allow not to worry about safety of children or pets.

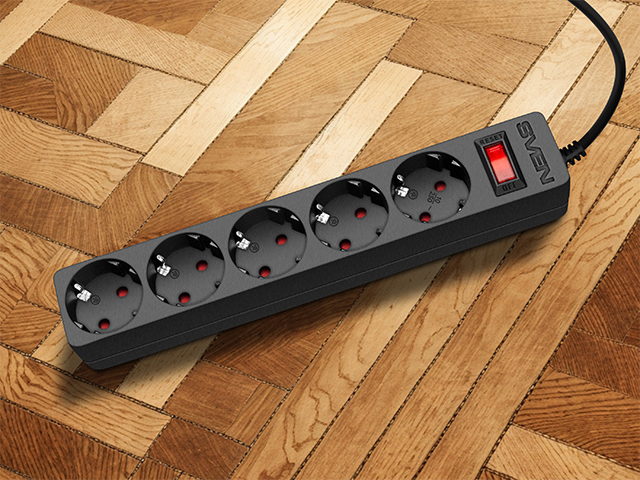

Five euro sockets with reliable plug fixation

The power strips are fitted with five sockets of the most widely applied european standard CEE7/4 (EU) with protective shutters to connect various devices.

Switch with light indicator
Automatic fuse for protection against overloads and short circuits in the switch key
Varistor protection against highvoltage impulse noise
Children protection
Five EU sockets CEE7/4 (EU) with durable fixation of plugs of any type
Wall mountable
Maximum permissible load 2300 W

Output sockets	5 × СЕЕ 7/4
Rated voltage, V	≤250
Connected load total power, kW	2.3 MAX
Maximum absorbed power, J	≤150
Input plug	СЕЕ 7/7
Thermoelectric cut-off fuse operating current, А	>10
Cord length, m	1 1.8 3 5
Dimensions (W × H × D), mm	262 × 40 × 48
Weight, kg	0.306 0.360 0.445 0.578
Color	black

Package contents

Surge protector — 1 pc
User Manual — 1 pc
Warranty card — 1 pc

Other items

SVEN GC-W900 Racing Wheel

Windows/Android/PS3/PS4/XB1/XB360/N-Switch/X-Input/Direct Input compatible gaming steering wheel with shift lever

SVEN KB-G9500

Mechanical programmable keyboard

SVEN PS-680

Multifunctional portable karaoke speaker system with backlight

SVEN GC-400 Gamepad

Windows/PS3/PS4 compatible wired gamepad

SVEN 300

Speakers with volume control on the back

SVEN RX-G720

Gaming mouse

SVEN GS-4300

Gaming set: keyboard + mouse + mousepad

New

SVEN SRP-155

Portable radio, Bluetooth, USB/microSD player

SVEN GC-750 Gamepad

Windows/Android/PS3 compatible wired gamepad

SVEN AP-U988MV

Gaming headset with RGB backlight and 7.1 virtual sound

SVEN SPS-603

USB powered speakers with headphone and microphone jacks

New

SVEN AP-B710MV

Active Noise Canceling (ANC) wireless stereo headset

This power strip extension is design to protect electric equipment from impulse noise that can arise in power network. It provides reliable protection from overvoltage, short circuit and impulse noise that can damage electric equipment. It is equipped with protective shutters, preventing from getting foreign objects to the contacts. Nonflammable plastic is an important part of electric safety nowadays. Wall-mount fittings allow fastening this power extension in a required place using screws.

Strip extension has 5 output sockets to connect several devices at once. General socket switch helps conveniently manage all connected devices at once. Maximum load of the strip extension is 2300 W, allowing a lot of household appliances to be connected. Rated load current is 10 A, matching majority of household appliances.

Strip extension has protection against impulse noises, that can arise in power network. Maximum absorbed energy of impulse noise does not exceed 150 J, and maximum absorbed current of impulse noise is 4500 A. This ensures reliable protection against overvoltage and short circuit. Strip extension has different lengths of its cable — 1.0, 1.8, 3.0, 5.0 m, allowing the most suitable option to be selected for a particular task. Strip extension has dimensions of 262 × 40 × 48 mm and can be easily put in any location.

Strip extension can be operated in a wide temperature range — from +10 to +70°С, making it possible to use in various working conditions. Air humidity should not exceed 65% in order to ensure reliable operation of the strip extension in humid conditions. Strip extension comes in different weight options — from 306 to 578 g depending on the cable length. This makes it light and convenient for transportation and installation.

In general, this surge protector is a reliable and convenient device to protect electric equipment from impulse noise and overvoltage in electric network. It offers all required properties for application at home or in office.
