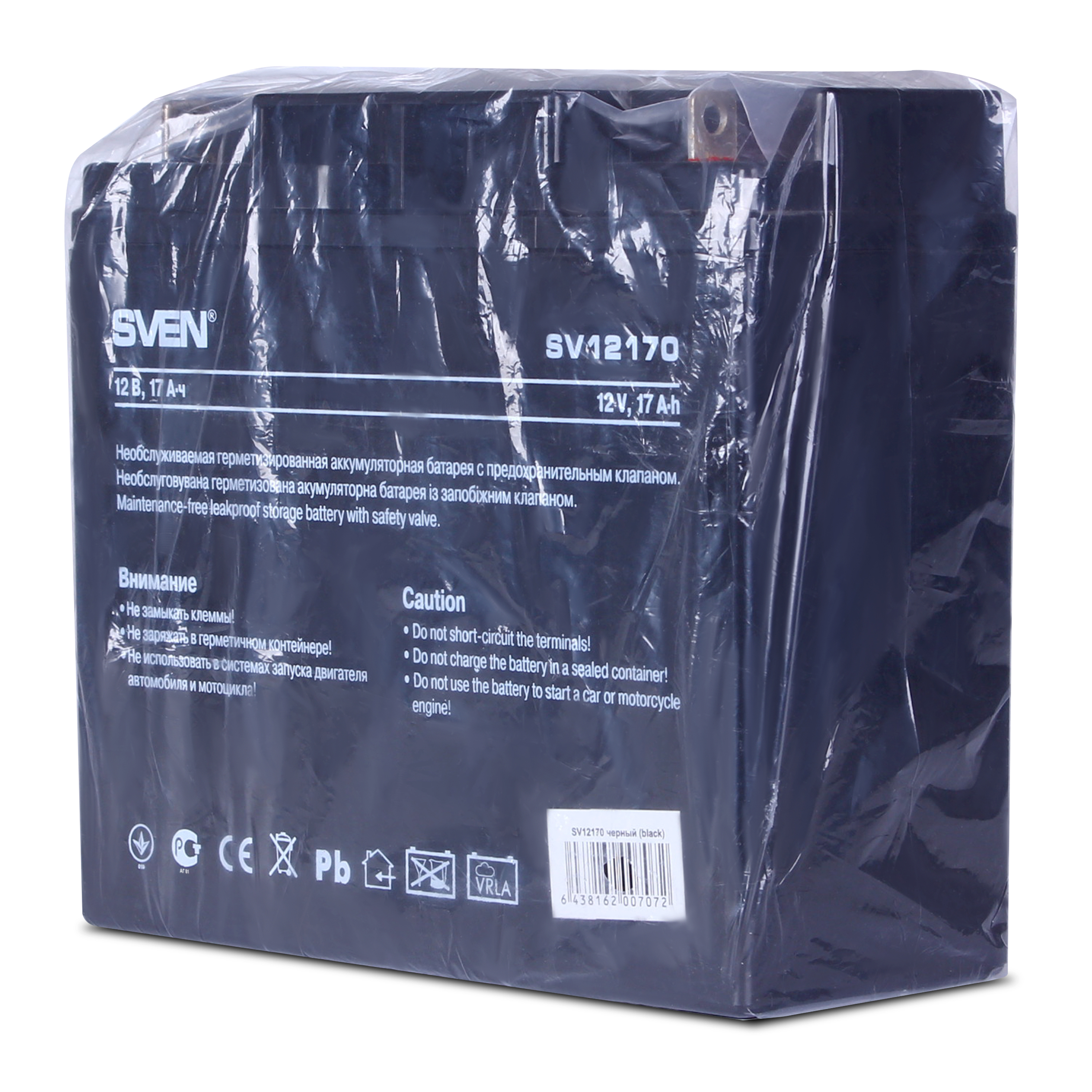

SVEN SV12170

UPS battery 12V 17Ah

Catalog Electrical Equipment Batteries SVEN SV12170

AN: SV-0222017

SVEN SV12170

UPS battery 12V 17Ah

Short product description:

Lead-acid battery of AGM type
Leak-proof design
Doesn't require maintenance and service
Increased service life

All features

Similar products

SVEN SV645

SVEN SV1250

SVEN SV1270

SVEN SV1272

SVEN SV1290

SVEN SV12120

SVEN SV121000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Lead-acid battery of AGM type
Leak-proof design
Maintenance-free: doesn't require maintenance and can operate in any position
Design of interelectrode separators made of glass fiber increases service life
Does not liberate gas during operation
Valve system protecting the battery against increased pressure
Highly effective lead-calcium electrode grids increasing capacity
Lowered self-discharge current

Battery type	Lead-acid AGM type storage battery
Rated voltage, V	12
Maximum discharge current, A	225
Capacity (20 hours discharge), А • h	17
Maximum charging current, A	5.1
Internal resistance, MOhm	15
Self-discharge (at 25 °C of initial capacity) during the year	up to 36 %
Rated operating temperature, °C	25
Operating temperature range, °C	-20 up to +50
Terminal type	T1
Length, mm	181
Width, mm	77
Hight, mm	167
Total hight, mm	167
Weight, kg	5.05
Color	black
Life time	5 years

Other items

SVEN VR-F1000

Relay automatic voltage regulator, 320 W, 4 sockets

SVEN E-292M

Wired in-ear earbuds

SVEN PS-770

Party speaker system with Bluetooth, karaoke and FM radio

SVEN RX-450W

Wireless mouse with adjustable cursor speed

SVEN AVR SLIM-500 LCD

Relay automatic voltage regulator, wall-mounted, LCD, 400 W, 1 socket

SVEN GC-W150 Racing Wheel

Windows/PS3/PS4/Nintendo Switch/Android compatible gaming steering wheel with shift lever

SVEN PS-390

Waterproof portable speaker system with backlight

SVEN AVR SLIM-2000 LCD

Relay automatic voltage regulator, wall-mounted, LCD, 1200 W, 2 sockets

SVEN SRP-505

Portable wireless radio, USB/microSD player

SVEN UP-L800

Line interactive UPS, 400W, 3 sockets

SVEN RX-G980W

Wireless gaming mouse

SVEN AP-545MV

On-ear wired headset

As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.

Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
