SVEN AVR SLIM-500 LCD

Relay automatic voltage regulator, wall-mounted, LCD, 400 W, 1 socket

Catalog Electrical Equipment Automatic Voltage Regulators SVEN AVR SLIM-500 LCD

2 MORE

AN: SV-012809

SVEN AVR SLIM-500 LCD

Relay automatic voltage regulator, wall-mounted, LCD, 400 W, 1 socket

Short product description:

Microprocessor control
LED indication of operating modes
Increased accuracy of output voltage stabilization
Thermal protection of the transformer

All features

Similar products

SVEN VR-L600

SVEN VR-L1000

SVEN VR-L1500

SVEN VR-A1000

SVEN AVR SLIM-1000 LCD

SVEN AVR SLIM-2000 LCD

SVEN VR-F600

SVEN VR-F1000

SVEN VR-F1200U

SVEN VR-F1500

SVEN VR-F2000U

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Microprocessor control
LED indication of operating modes
Increased accuracy of output voltage stabilization
Thermal protection of the transformer
Safe shutdown at high and low mains voltage levels
Varistor protection against high-voltage impulse noise
Slim metal body
Wall mountable
One EU socket CEE7/4 (EU) with durable fixation of plugs of any type
Children protection

AVR type	relay
Total power, VА	≤500
Maximal output power, W	≤400
Maximum load, W	≤400
Input voltage, V	~140 – 260
Output voltage, V	~220 ± 10 %
Input frequency, Hz	50
Output frequency, Hz	50
Output sockets	1 × CEE 7/4
Protection	against high/low voltage in the power supply network, high-frequency and impulse interferences, overload and short circuit; built-in thermal protection
Protection operating current, A	5
Typical switching time, ms	≤ 10
Indication	output voltage level
Indicators	Delaying / protection, Working, Regulating
Fuse	bimetallic circuit breaker
Input plug	1 × СЕЕ7/7
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Cable length, m	1.3
Case material	metal
Dimensions (W × H × D), mm	290 × 175 × 60
Weight, kg	2.48
Color	light grey
Life time	5 years

Package contents

Automatic voltage regulator — 1 pc
User manual — 1 pc
Warranty card — 1 pc

Other items

SVEN GS-4300

Gaming set: keyboard + mouse + mousepad

New

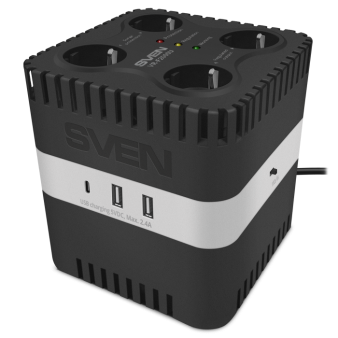

SVEN VR-F2000U

Relay automatic voltage regulator, 530 W, 4 sockets

SVEN AP-U1500MV

Gaming headset with RGB backlight and 7.1 virtual sound

SVEN KB-G8800

Programmable RGB backlit gaming keyboard.

SVEN RX-G930W

Wireless gaming mouse

SVEN GC-W650 Racing Wheel

PS-3/4/XB1S/X/XB360/N-Switch/Windows/Android compatible gaming steering wheel

New

SVEN G345

Speaker system with Bluetooth and dynamic switchable backlight

SVEN 445

Speaker system with dynamic switchable lighting

SVEN PS-710

Party speaker system with Bluetooth, karaoke and FM radio

SVEN AP-U1001MV

Gaming headset with RGB backlight

SVEN GC-4040 Gamepad

P4/Windows/Android/iOS compatible wireless gamepad

SVEN MS-2070

Backlit gaming speaker system, Bluetooth, USB/SD player, FM radio, display, remote control

SVEN TM presents novelties: wall automatic voltage regulators AVR SLIM-500 LCD and AVR SLIM-1000 LCD.

Wall automatic voltage regulators AVR SLIM-500 LCD and AVR SLIM-1000 LCD are designed to supply stabilized voltage to household appliances in conditions of voltage deviations of the single-phase power supply system of lower or higher admissible value. Automatic voltage regulators provide protection of connected electrical appliances and realize their safe connection after power failure removal.

The extended rating of input voltages (140 – 260 V) enables to provide the power supply to appliances even in conditions of critical power supply state. Automatic voltage regulators with different nominal powers up to 400 W (AVR SLIM-500 LCD) and up to 800 W (AVR SLIM-1000 LCD) make it possible to select optimal choice of a model for certain tasks of a user.

The use of microprocessor in the electronic circuit of an automatic voltage regulator enables to realize the following function package – the extended precision of output voltage regulation, display of a current input/output voltage value on LCD display of the front panel, display of AVR status, PAUSE function with the controlled power supply delay (within 6 or 180 sec.) after its resumption, protection against high/low voltage in the power supply network, against high-frequency and impulse interferences, protection of AVR against overload and short circuit. In addition, automatic voltage regulators have thermal protection of the autotransformer.

Compact automatic voltage regulators AVR SLIM-500 LCD and AVR SLIM-1000 LCD have an attractive modern design, as well as wall fasteners. The control panel is located on the right side wall. Constructively AVRs have strong metal housings, due to which they can be installed not only in technical premises, but also in the immediate vicinity with connected devices.
