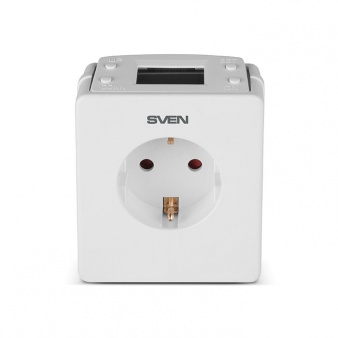

SVEN RN-16D
Features
- Protection of connected devices against high/low voltage in the power supply network
- Protection of connected devices against impulse noises in the power supply network (varistor)
- Programmable disconnection thresholds and turn-on delay time
- Nonvolatile memory of programmed settings
- Multifunctional LCD display to show voltage level in the power supply net work, delay time and protection status indication
- Protective shutters in the output socket
- Presence of protective, fuse * 15А
Technical Specifications
Measured voltage, V
140 – 280
Operating frequency, Hz
50
Maximum load current, А
15
Maximum power, kVА
≤3.3
Maximum absorbed power, J
≤125
Maximum absorbed current of pulse distortion, A
operating mode: 2500
protective mode: 4500
protective mode: 4500
Operation threshold to decrease power supply voltage, V
~150 - 215 ± 2%
Operation threshold to increase power supply voltage, V
~ 225 - 275 ± 2%
Output sockets
1× СЕЕ 7/4
Protection actuation time, sec
≤ 0,3 sec
Dimensions, mm
73 × 78 × 86.7
Weight, kg
0.128
Color
white
Life time
2 years
