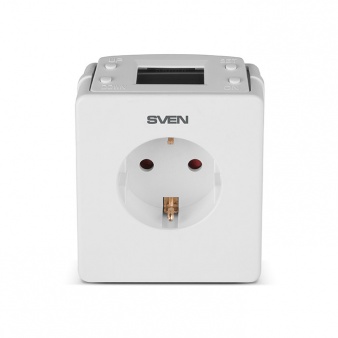

SVEN OVP-16PD

Remember this product
    Features
    • Protection of connected devices against high/low voltage in the power supply network
    • Protection of connected devices against impulse noises in the power supply network (varistor)
    • Programmable disconnection thresholds and turn-on delay time
    • Nonvolatile memory of programmed settings
    • Multifunctional LCD display to show voltage level in the power supply net work, delay time and protection status indication
    • Protective shutters in the output socket
    • Presence of protective, fuse * 15А
    Technical Specifications
    Measured voltage, V 140 – 280
    Operating frequency, Hz 50
    Maximum load current, А 15
    Maximum power, kVА ≤3.3
    Maximum absorbed power, J ≤125
    Maximum absorbed current of pulse distortion, A operating mode: 2500
    protective mode: 4500
    Operation threshold to decrease power supply voltage, V ~150 - 215 ± 2%
    Operation threshold to increase power supply voltage, V ~ 225 - 275 ± 2%
    Output sockets 1× СЕЕ 7/4
    Protection actuation time, sec ≤ 0,3 sec
    Dimensions, mm 72 × 86 × 77.5
    Weight, kg 0.128
    Color white
    Life time 2 years
