SVEN VR-F2000U

Relay automatic voltage regulator, 530 W, 4 sockets

New

Catalog Electrical Equipment Automatic Voltage Regulators SVEN VR-F2000U

New

AN: SV-022778

SVEN VR-F2000U

Relay automatic voltage regulator, 530 W, 4 sockets

Short product description:

Input voltage ~170-285 V (±3%)
Output sockets 4 × CEE 7/4 (2 × AVR and 2 × surge protector)
Additional outputs 2 × USB-A and 1 × USB type-C
Wall mountable

All features

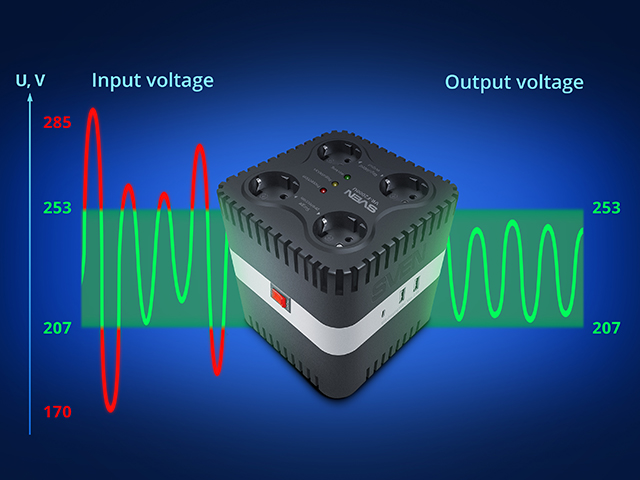

Wide range of input voltage

Input voltage, enabling stable operation of the device, varies between 170 and 285 V.

Four output sockets Cee 7/4 with different designation

The device contains four output sockets CEE7/4: two of them operate in AVR mode and the other two — in a power strip mode.

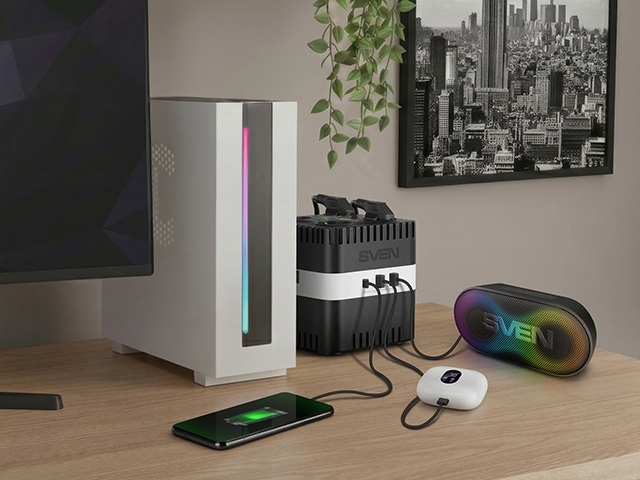

Additional outputs 2 × USB-A and 1 × USB type-C

An excellent solution for those who want to charge several devices simultaneously without losing power. Thanks to type-C and USB-A, the device is compatible with almost any equipment, and the total maximum current of 2.4A ensures fast and safe charging.

Pause at power supply after failure

Power supply to connected devices after a power failure is possible with a pause of your choice for 6 or 180 seconds, which provides an additional level of protection.

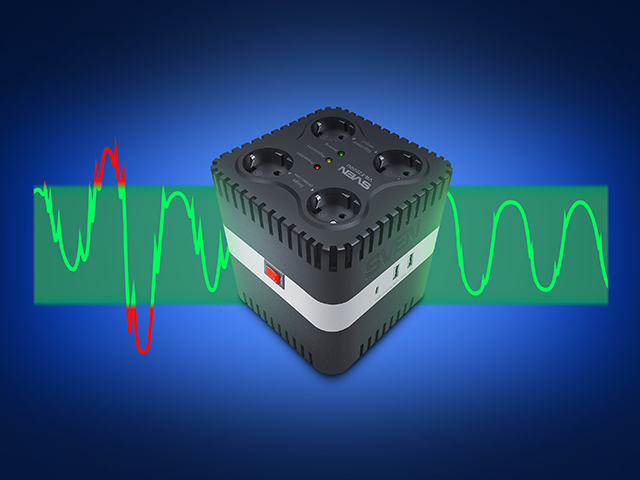

Built-in power strip

Built-in power strip protects against high frequency pulses and noises in electrical network.

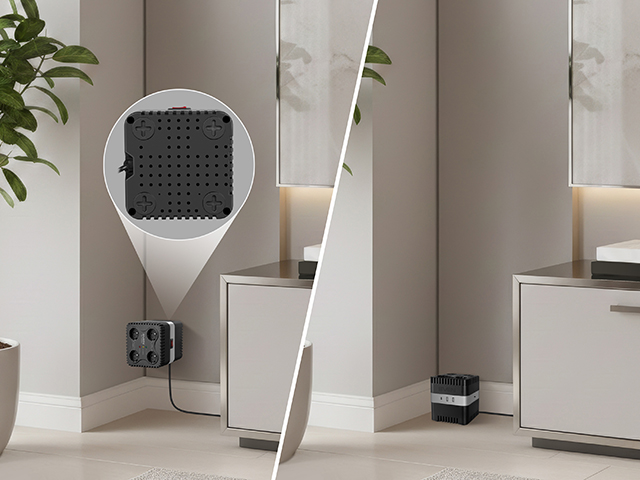

Wall-mounting for compact positioning

Mount openings on the back panel help install the device on walls at any required position with no effort.

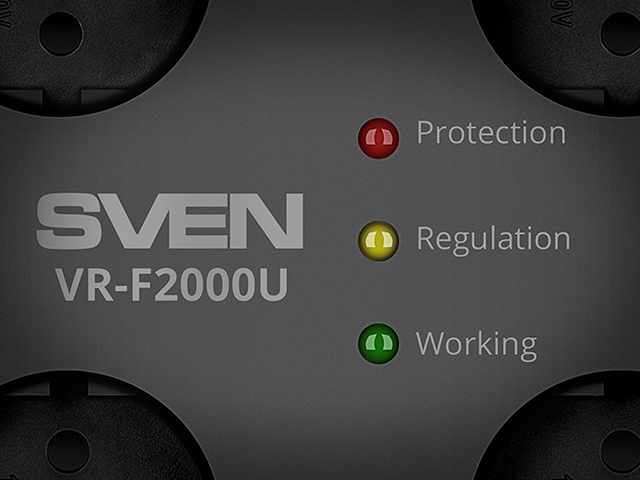

LED indication of operation modes

LED indicators allow to monitor current state and operation mode of the device.

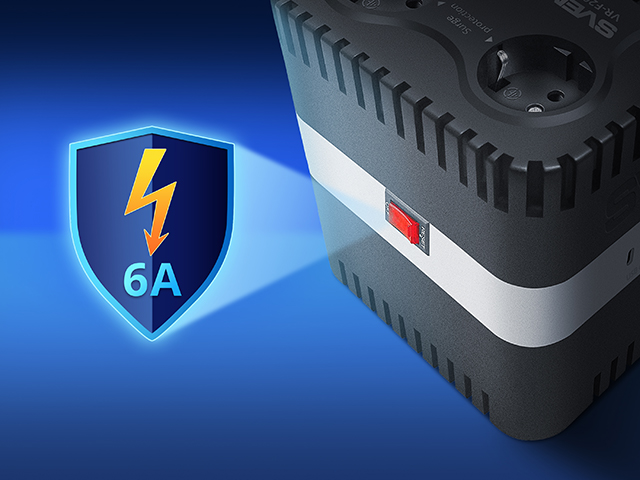

Automatic fuse in a switch key

Automatic fuse in a switch key ensures full protection against overloads and short circuits, as well as allows to continue operation after triggering.

Single-phase relay-type stabilizer
Input voltage ~170-285 V (±3%)
Output voltage ~230 V (-10/+10%)
Four output sockets CEE 7/4 (2 × AVR, 2 × surge protector)
Additional connectors 1 × USB type-C and 2 × USB-A with a total maximum output current of 5 V /2.4 A
Safe shutdown at high and low mains voltage levels
Select the time to delay power supply (6 or 180 seconds) when power is restored
Built-in surge protector for protection against HF pulses and interference
Wall mountable
LED indication of operating modes
Automatic fuse for protection against overloads and short circuits in the switch key
Thermal protection of the transformer

Maximal output power, W	≤530
Input voltage, V	~170 - 285 (±3%)
Output voltage, V	~230 (-10/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Input socket	1 × СЕЕ7/7
Output sockets	4 × CEE7/4
Protection operating current, A	6
Typical switching time, ms	≤10
Maximum absorbed impulse noise power, J	≤320
Turn-on delay time, sec	6/180
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Cable length, m	1.2
Dimensions (W × H × D), mm	142 × 158 × 146
Weight, kg	2.4
Color	black

Package contents

Automatic voltage regulator — 1 pc
User manual — 1 pc
Warranty card — 1 pc

Other items

SVEN E-210M

Wired in-ear earbuds with microphone

SVEN MK-150

Wired clip-on microphone

SVEN KB-E5500

Wired chiclet keyboard

SVEN PS-555

Portable speaker with Bluetooth, karaoke and RGB backlight

SVEN GC-W150 Racing Wheel

Windows/PS3/PS4/Nintendo Switch/Android compatible gaming steering wheel with shift lever

SVEN AP-U1500MV

Gaming headset with RGB backlight and 7.1 virtual sound

SVEN RX-450W

Wireless mouse with adjustable cursor speed

SVEN MS-2055

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control

SVEN KB-G8500

Backlit gaming keyboard

SVEN KB-C3600W

Wireless set: multimedia keyboard + mouse

SVEN RX-170

Wired mouse

SVEN SPS-512

USB powered speakers with RGB backlight

We are pleased to present a single-phase relay voltage stabilizer designed for comprehensive protection of home appliances and simultaneous charging of mobile devices. The SVEN VR-F2000U model combine voltage stabilization, surge suppression, and modern USB hub functionality in one compact solution.

The model is engineered for use in power grids with unstable voltage. It delivers a stable output voltage of ~230 V (-10%/+10%) across a wide input range of 170–285 V (±3%). With a switching time of no more than 10 ms, this device ensure safe and reliable operation for sensitive electronics.

The built-in surge filter protects connected equipment from high-frequency impulses and electrical noise, absorbing surge energy up to 320 J. An additional layer of safety is provided by an auto-resetting circuit breaker integrated directly into the power switch: it safeguards against overloads and short circuits and allows for quick recovery after tripping. Thermal protection for the transformer is also included.

A key feature of the model is the enhanced versatility of the outlet configuration. The unit is equipped with four CEE 7/4 output sockets: 2 sockets operate in AVR (voltage stabilization) + surge filter mode and 2 sockets operate in surge filter mode only.

For users with modern gadgets, the device includes additional charging ports: 1 × USB Type-C and 2 × USB-A. The combined maximum output current for all USB ports is 5 V / 2.4 A, enabling fast and safe simultaneous charging of multiple devices without power loss.

Users can independently select the delay time for power restoration after a grid interruption — 6 or 180 seconds. This feature provides an extra layer of protection for equipment against repeated voltage spikes during power recovery scenarios. LED indicators keep users informed about the current operating mode and device status.

Thanks to four mounting holes on the rear panel, the stabilizer can be conveniently wall-mounted in any orientation, saving valuable floor or desk space. The power cord length is 1.2 meters, and the input plug follows the CEE 7/7 standard.

The SVEN VR-F2000U stabilizer is an excellent solution for anyone looking to protect their equipment from voltage fluctuations while creating a convenient charging station for smartphones and tablets. With both Type-C and USB-A ports, this device is compatible with virtually any modern gadget.
