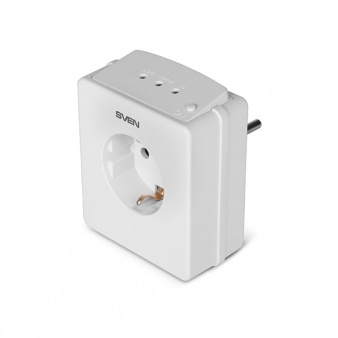

SVEN RN-15

Features
  • Protection of connected devices against high/low overvoltage in the power supply network
  • Protecting from high-frequency and impulsive noises
  • Delay on to protect against repeated failures
  • Fixed protection parameters for operation simplicity
  • The possibility of manual power-on of the load, before the expiration of the pause
  • Voltage relay status indication
  • Protective shutters in the output socket
  • Protective grounding contacts, fusible safety device 15А
Technical Specifications
Measured voltage, V
~100-280
Operating frequency, Hz
50
Maximum load current, А
15
Maximum power, kVА
3.3
Maximum absorbed power, J
≤125
Maximum absorbed current of pulse distortion, A
4500
Operation threshold to decrease power supply voltage, V
199 ± 2%
Operation threshold to increase power supply voltage, V
252 ± 2%
Output sockets
1× СЕЕ 7/4
Protection actuation time, sec
≤ 0,3 sec
Dimensions, mm
73 × 78 × 86.7
Weight, kg
0.126
Color
white
Life time
2 years
